EXKOP® QV III

for a space-saving, bidirectional decoupling, nominal sizes up to DN 300-600.

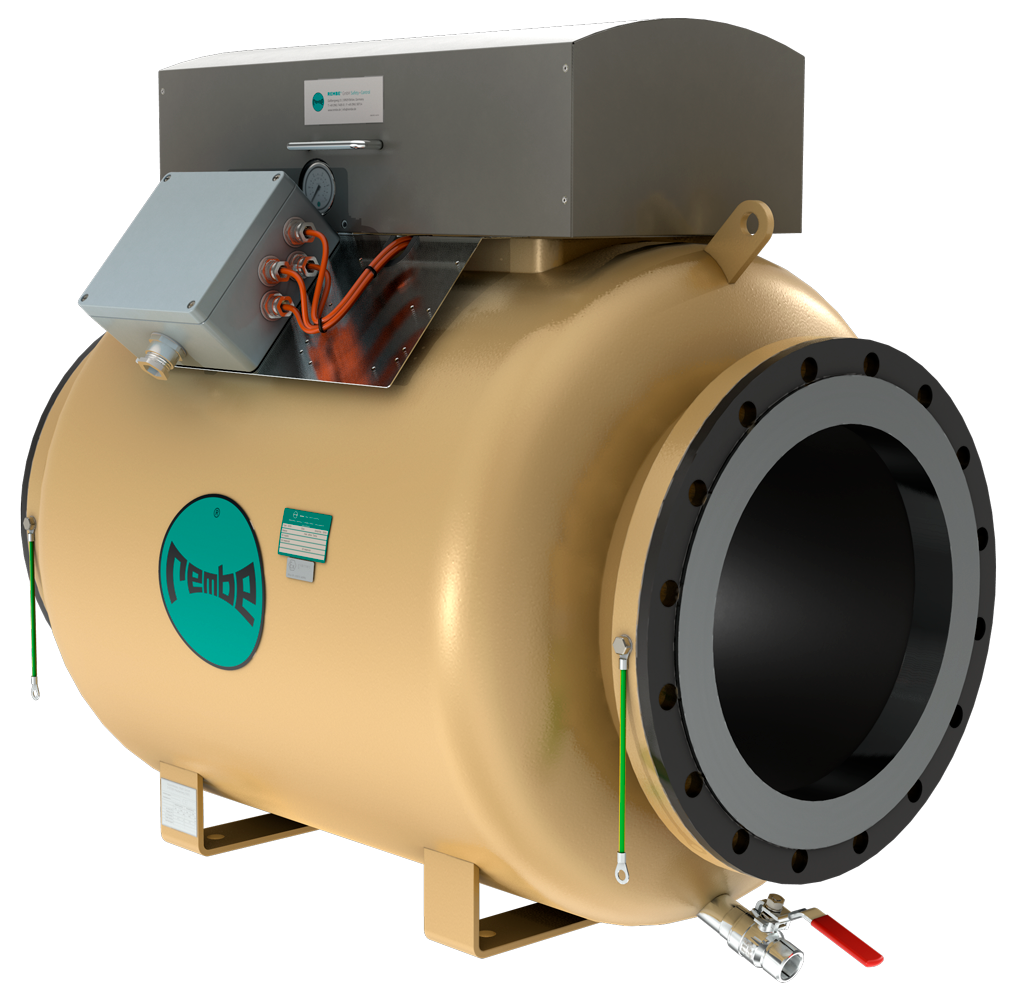

REMBE® EXKOP® QV III
Made in Germany

Decoupling with quench valves.

The REMBE® EXKOP® QV III quench valve is a decoupling device that is installed in a pipeline in order to limit any explosions to the relevant part of the system. To do this, the quench valve is connected to a controller (EXKOP® Express or EXKOP® TriCon).
Application
REMBE® EXKOP® QV III is suited with a Spark arrester (e.g. between a mill and the product filter) and an overpressure limiter (e.g. between a silo vehicle and the silo).
REMBE EXKOP QV III with Accessoires

rubber sleeve

Heating

Advantages
  • Compact design for flexible integration into the production process.
  • High level of safety due to very rapid closing times.
  • Returns to operation immediately after triggering.
  • Fail Safe mechanism automatically closes the valve if the power supply fails or the valve is manipulated.
Mechanism
In the case of an explosion, the controller receives a trigger signal (e.g. from the signalling unit of the Q-Rohr® or an explosion vent, from a pressure switch or spark detector) and activates the connected quench valves. These close within a few milliseconds and thus prevent the explosion from spreading to adjacent plant components. After being triggered, the quench valves can be put back in operation once again at the touch of a button.
Technical data *
Product parameters
Diameter nominal**DN 300 - DN 600
Housing material
St 37.2, painted (RAL 1015)
Flanges
acc. EN 1092-1 Typ 11 (PN 10)***
Operating limits Medium
organic and chemical dusts
Operating limits KSt
≤ 200 bar × m/s
Operating limits Pmax
≤ 10 bar
Operating limits MZE
≥ 3 mj
Operating limits Pred
≤ 1,0 bar
Operating limits Allowable flow rate
≤ 30 m/s
Operating limits ATEX category indoor/outdoor
1D/3D
Suitable for use in food processing industry
Ambient temperature
+ 5 up to + 60 °C****
Installation position
any
Power supply
24 VDC from EXKOP® controller
Compressed air supply
6.0 bar gauge pressure from system network
Compressed air connection
8 mm (Festo)
Protection type
IP 65
* Our specialists will be pleased to assist you in finding a solution that matches your specific operating conditions.
** Other nominal diameters available on request.
*** Replaces DIN 2632, PN 10.
**** Other ambient temperature available on request.
Applications + Industries
  • animal feed productions
  • aspiration plants
  • brewery
  • conveyors
  • destoners
  • elevators
  • filters
  • food
  • food production
  • mills and grinding plants
  • mixers
  • recycling
  • screens
  • silo
  • spray dryers
  • wood processing

Certifications

ATEX EC type examination certificate no. FSA 15 ATEX 1659 X

ATEX EC type
examination certificate no.
FSA 15 ATEX 1659 X

Certified in
accordance with

EN 15089

The EXKOP® system is ideal in combination with explosion vents or flameless explosion venting solutions.

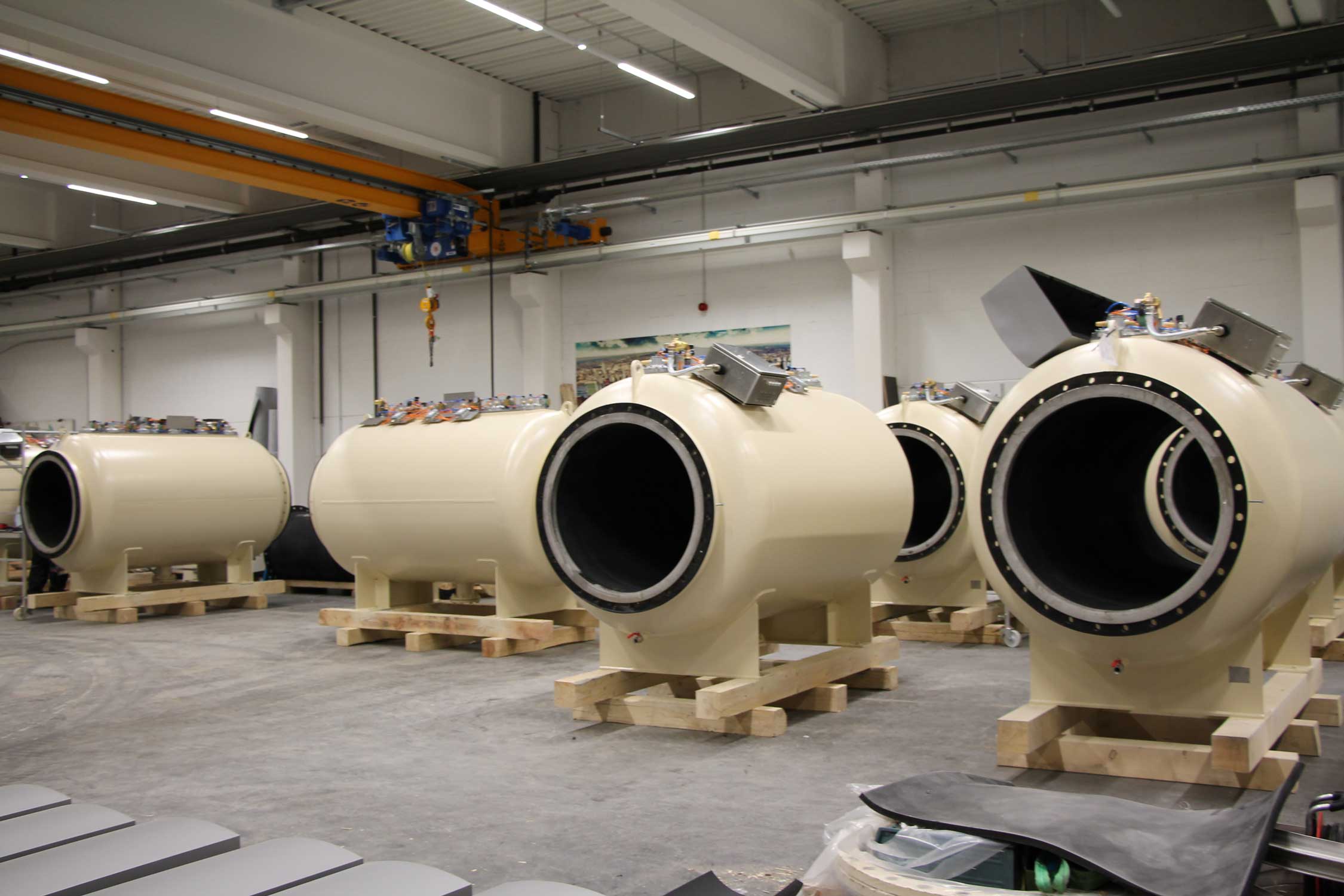

REMBE® EXKOP® QV III

at the production.

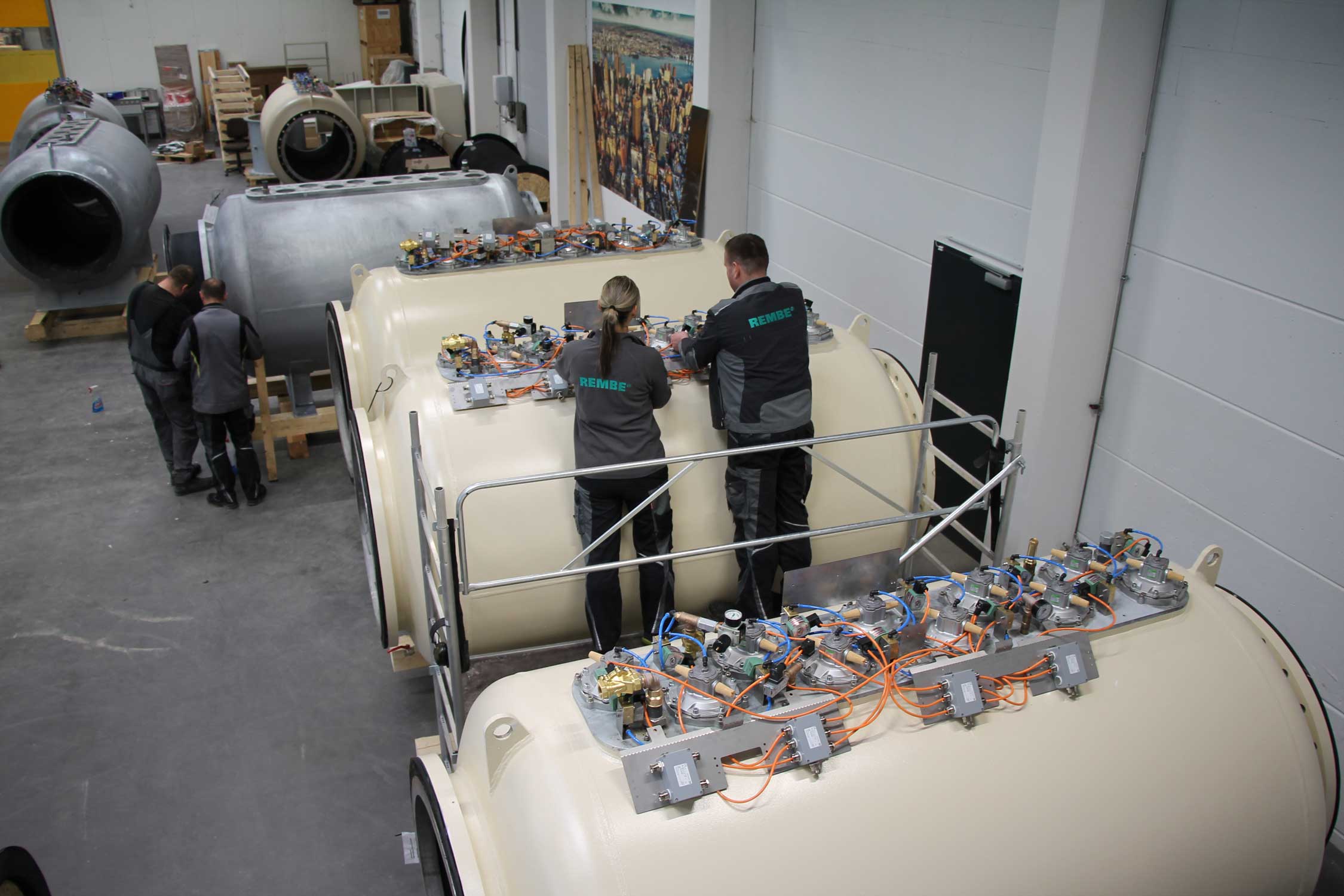

REMBE® EXKOP® QV III

at the production.

REMBE® EXKOP® QV III

at the production.
